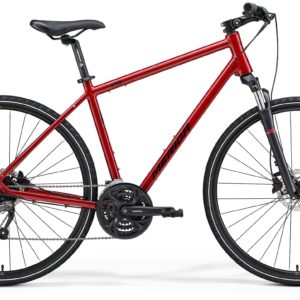

MERIDA Crossway 40 2021
April 20, 2021

MERIDA Crossway 40 2021

700.00

2 in stock

Category:

Size: Medium 51cm

Colour: Grey

This disc-equipped Crossway 40 model has a new TFS frame which uses a much slimmer tube profile giving the bikes a much lighter and sporty look. Cables are internally routed and colourways are kept simple to maintain the modern appearance.

 Specifications:

  •  Frame: TFS – 6061 series double butted and techno formed aluminium tubing with new ‘urban’ look and internal cable routing.   Tapered head tube for confidence-inspiring handling. Equipped with mounts for rack, mudguards and kickstand.
  •  Fork: Suntour NEX HLO; Coil; 63mm travel; Lockout
  •  Rims: Merida CC; 17mm inner rim width; Material: aluminium
  •  Spokes: Black steel
  •  Front Hub: Shimano TX505; 100x9mm; 32 spokes; Centerlock
  •  Rear Hub: Shimano TX505; 135x9mm; 32 spokes; Centerlock
  •  Front Tyres: Merida K1171; 700 x 40C; wire bead
  •  Rear Tyres: Merida K1171; 700 x 40C; wire bead
  •  Speed: 27
  •  Shifters: Shimano ST-EF505
  •  Front Derailleur: Shimano FD-M370
  •  Rear Derailleur: Shimano RD-M370
  •  Crankset: Shimano FC-M371; 48-36-26 teeth chainwheel with 170mm – XXS/SM, 175mm – ML/XXL length crank
  •  Cassette: Shimano CS-HG200; 11-32 teeth; 9 speed
  •  Bottom Bracket: FSA TH-7420ST-W, Cartridge Bearing
  •  Chain: KMC M99
  •  Pedals: VP Components, VPE-891
  •  Brakes Levers: Shimano BR-MT200 (or Tektro HD-M275 if Shimano supply is delayed)
  •  Front Brakes: Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake calliper with Shimano RT10; 160mm rotor
  •  Rear Brakes: Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake calliper with Shimano RT10; 160mm rotor
  •  Grip: Merida EC
  •  Handlebar: Merida CC; aluminium; 660mm wide; 25mm rise
  •  Stem: Merida TK; aluminium; 25.4mm diameter; adjustable – Length : 100 mm all sizes
  •  Headset: Merida M2345
  •  Saddle: Merida Cross Sport
  •  Seat Post: Merida CC; aluminium; 30.9mm diameter; 15mm lay back
